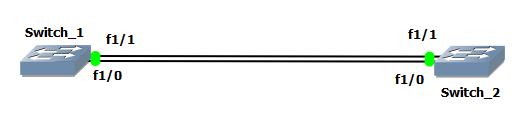

Ø Switch_1(config)#interface range fastEthernet 1/0 – 1 (enable bundle them together in a 1 Port}

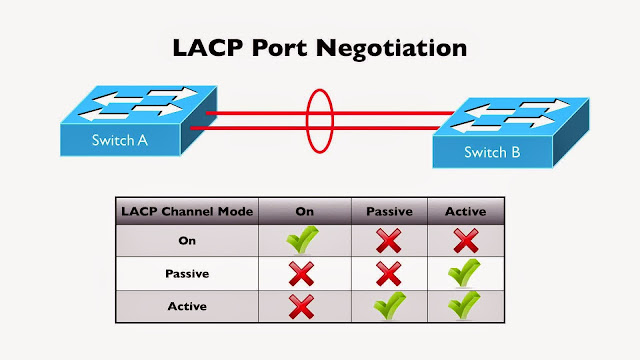

Ø Switch_1 (config-if-range) #channel-group 1 mode
on {1:- Channel group no. (any but Same in Both
Switches}
Ø Switch_1(config-if-range)#exit
Ø Switch_2(config)#interface range fastEthernet 1/0 – 1 (enable bundle them together in a 1 Port}
Ø Switch_2(config-if-range)#channel-group 1 mode
on {1 :- Channel group no. (any but Same in Both
Switches}
Ø Switch_2(config-if-range)#exit
{Now our Both
Switches is configured if we do any configurations
{We did not use
fastEthernet instead We use}
Ø Switch# show ip interface brief
{Do any
configuration this implemented in both Ethernet interface}
{For E.g.
Configured as Trunk Port}
Ø Switch_2 (config) #interface port-channel
1 {1 is channel no.}
Ø Switch_2 (config-if)# Switchport mode trunk
Ø Switch_1 (config) #interface port-channel
1 {1 is channel no.}
Ø Switch_1 (config-if)# Switchport mode trunk
