Networking Devices

            Network Component

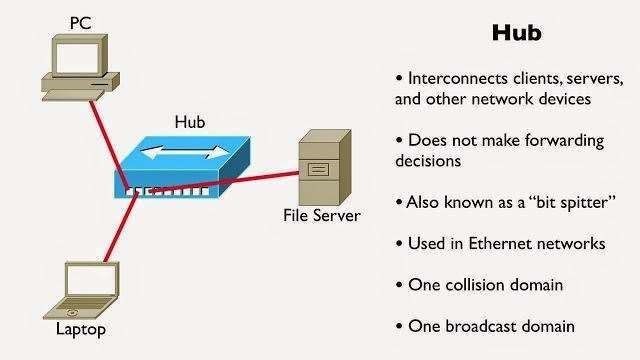

 HUB: -

Above Photo Credit :-www.omnisecu.com

Ø  1 Collision Domain: - One port can send and receive at same time.

Ø 1  Broadcast Domain: -How Far Broadcast travels in a network.

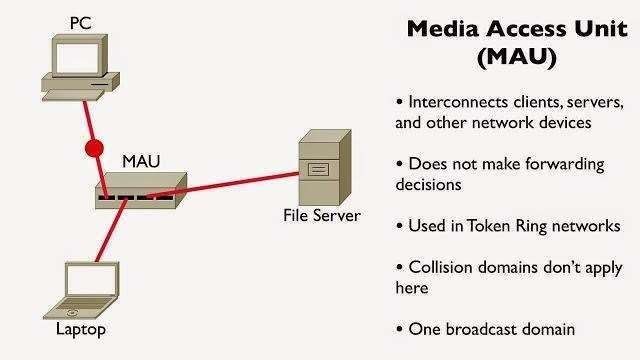

MAU (Media Access Unit): -
Bridge: - Learn Mac address one side to another side: -


    Switches: -

Ø  Each port has a collision domain
Ø  1 Broadcast Domain
Ø  Full Duplex communication
Ø  Learn mac address
Ø  Make Forwarding Decisions based on Mac Address
Ø  MAC (Media Access Control) address
                ü  A 48-bits address burnet into Network Interface Card (NIC).

Organization Unique identifier (OUI) (24 bits) (6 Hex Character)
Vendor Assigned or Vendor Code
(24 bits) (6 Hex Character)
00:19:56

2D:EA:8A

               Mac Address: -  00:19:56:2D:EA: 8A

Ø  The Mac address will store in Switch Chip called ASIC (Application specific Integrated Circuit) that is created by IBM
