GRE (Generic Routing
encapsulation)
Ø
It
is the simplest protocol
Ø
It
encapsulate inside or outside ip address
Ø
GRE
is nothing to do with encryption that IPsec provide
Ø
We
use GRE for Multicast traffic
Ø
It
allow us to start treating the VPN connection like we using private link
R1 interface
Configuration
Ø
R1(config)#interface
serial 1/0
Ø
R1(config-if)#description
CONNECTED WITH INTERNET
Ø
R1(config-if)#ip
address 100.100.100.2 255.255.255.252
Ø
R1(config-if)#no
shut
Ø
R1(config-if)#exit
Ø
R1(config)#interface
fastEthernet 0/0
Ø
R1(config-if)#description
CONNECTED WITH SW1
Ø
R1(config-if)#ip
address 192.168.2.1 255.255.255.0
Ø
R1(config-if)#no
shut
Ø
R1(config-if)#exit
Internet Router interface
Configuration
Ø
internet(config)#interface
serial 1/0
Ø
internet(config-if)#description
CONNECTED WITH R1
Ø
internet(config-if)#ip
address 100.100.100.1 255.255.255.252
Ø
internet(config-if)#clock
rate 64000
Ø
internet(config-if)#no
shut
Ø
internet(config-if)#exit
Ø
internet(config)#interface
serial 1/1
Ø
internet(config-if)#description
CONNECTED WITH R2
Ø
internet(config-if)#ip
address 200.200.200.1 255.255.255.252
Ø
internet(config-if)#clock
rate 64000
Ø
internet(config-if)#no
shut
Ø
internet(config-if)#exit
Router 2 interface
Configuration
Ø
R2(config)#interface
serial 1/1
Ø
R2(config-if)#description
CONNECTED WITH INTERNET
Ø
R2(config-if)#ip
address 200.200.200.2 255.255.255.252
Ø
R2(config-if)#no
shut
Ø
R2(config-if)#exit
Ø
R2(config)#interface
fastEthernet 0/0
Ø
R2(config-if)#description
CONNECTED WITH SW2
Ø
R2(config-if)#ip
address 10.250.250.1 255.255.255.0
Ø
R2(config-if)#no
shut
Ø
R2(config-if)#exit
GRE Tunnel interface
Configuration in R1 and R2
Ø
R1(config)#interface
tunnel 1 1:- Tunnel Number
Ø
R1(config-if)#description
TUNNEL DIRECTLY CONNECTING TO R2
Ø
R1(config-if)#tunnel
source 100.100.100.2 source Public ip address of R1
Ø
R1(config-if)#tunnel
destination 200.200.200.2 Destination Public
ip address of R2
Ø
R1(config-if)#ip
address 172.16.16.1 255.255.255.252 Private ip address for
Tunnel
Ø
R1(config-if)#exit
Ø
R2(config)#interface
tunnel 2 2:- Tunnel Number
Ø
R2(config-if)#description
TUNNEL DIRECTLY CONNECTING TO R1
Ø
R2(config-if)#tunnel
source 200.200.200.2 source Public ip address of R2
Ø
R2(config-if)#tunnel
destination 100.100.100.2 Destination Public
ip address of R1
Ø
R2(config-if)#ip
address 172.16.16.2 255.255.255.252 Private ip address
for Tunnel
Ø
R2(config-if)#exit
Protocol Configuration in
R1 and R2 to exchange their route
Ø
R1(config)#router
rip
Ø
R1(config-router)#version
2
Ø
R1(config-router)#network
192.168.2.0 {R1 internal network}
Ø
R1(config-router)#network
172.16.16.0 {R1 Tunnel
Network}
Ø
R1(config-router)#no
auto-summary
Ø
R1(config-router)#exit
Ø
R1(config)#ip
route 0.0.0.0 0.0.0.0 s1/0 {default route to internet}
Ø
R2(config)#router
rip
Ø
R2(config-router)#version
2
Ø
R2(config-router)#network
10.250.250.0 {R2 internal
network}
Ø
R2(config-router)#network
172.16.16.0 {R2 Tunnel
Network}
Ø
R2(config-router)#no
auto-summary
Ø
R2(config-router)#exit
Ø
R2(config)#ip
route 0.0.0.0 0.0.0.0 s1/1 {default route to internet}
Troubleshooting &
Verification Commands
Ø
Show
ip interface brief
Ø
Show
ip route
Ø
Show
interfaces tunnel 2 (Tunnel Number)
Ø
Verify
using
Ø

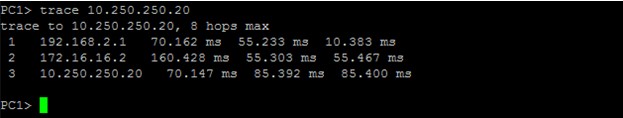

Traceroute
from PC1 to PC2
Ø
All the
traffic will go through Tunnel
Ø
GRE tunnel acts as all the devices are connected in same Ethernet
segment
Ø
And also It hides the public address
Click here to Download The PDF File
